A customer contracts us to help with navigation in their new building which must make it feel “like home.”

To start-jump the job, the project manager and the designer struggle to find their way from a meeting room back to elevators. The building screams for some signs to point you in the right direction. Taking pictures of a couple of dozens of really tricky hallways, sourcing the building floor plans, and taking our time to think it through. The main challenge is that there’re no traditional, clearly defined rooms and corridors there: instead, all walls are curved and have different finishes, surprising open spaces pop up here and there. Think a pleasant landscape with zero hints on how to determine your location. First task is to find some key-elements to build the navigation system around.

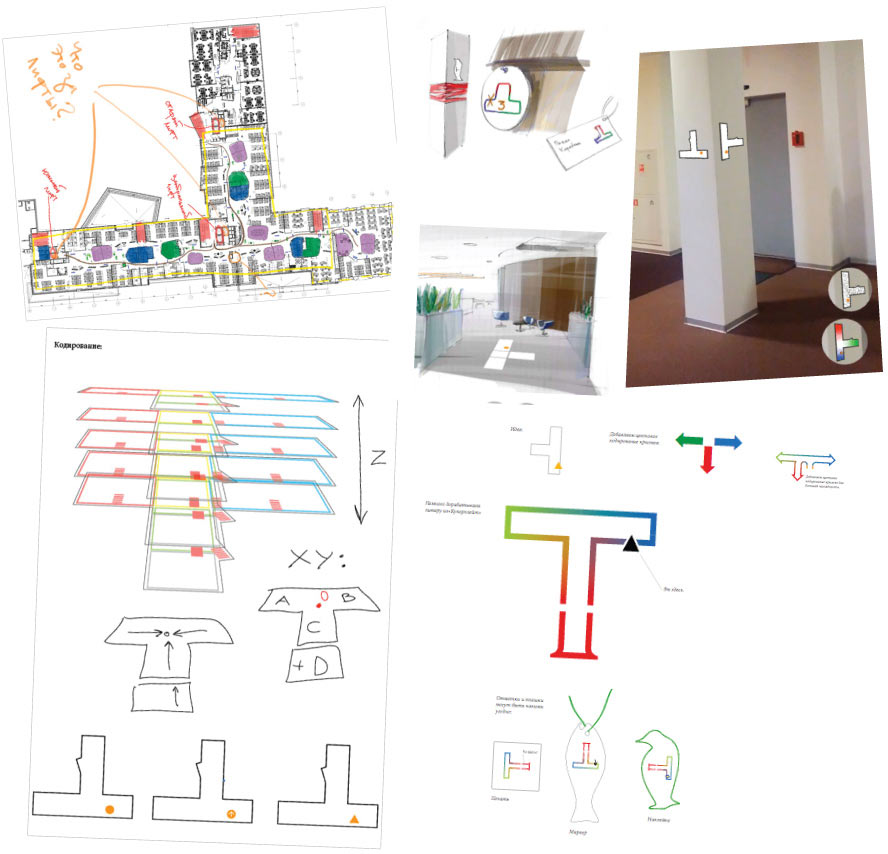

First worthy concept—T-coding.

yandex office navigation process 01

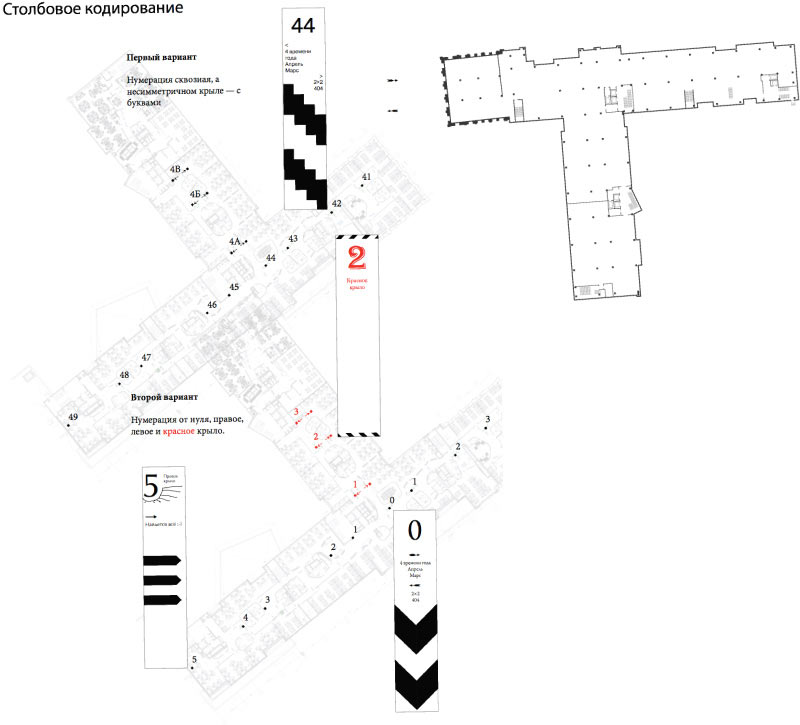

The second—the building rests on a grid of posts, which therefore appear regularly throughout the space, why not use them as mileposts?

yandex office navigation process 02

Choosing the posts to link locations to and developing an “address” system with lists of objects in alphabetical order, thinking up some changing navigation elements, and searching for a theme for each floor to set them apart in a subtle, informal manner.

yandex office navigation process 03

A “square,” “doubles,” “land,” “sky”:

yandex office navigation process 04

Meanwhile, testing different ways of navigating visitor flow in the actual setting.

yandex office navigation process 05

An idea pops up to use curved pointers that would resemble tree branches and would be intuitively recognized as directing towards and away from elevators.

yandex office navigation process 06

Additionally, the maintenance openings in the ceiling tiles practically beg to bear some signage as well and serve the community in-between pipe service sessions.

yandex office navigation process 07

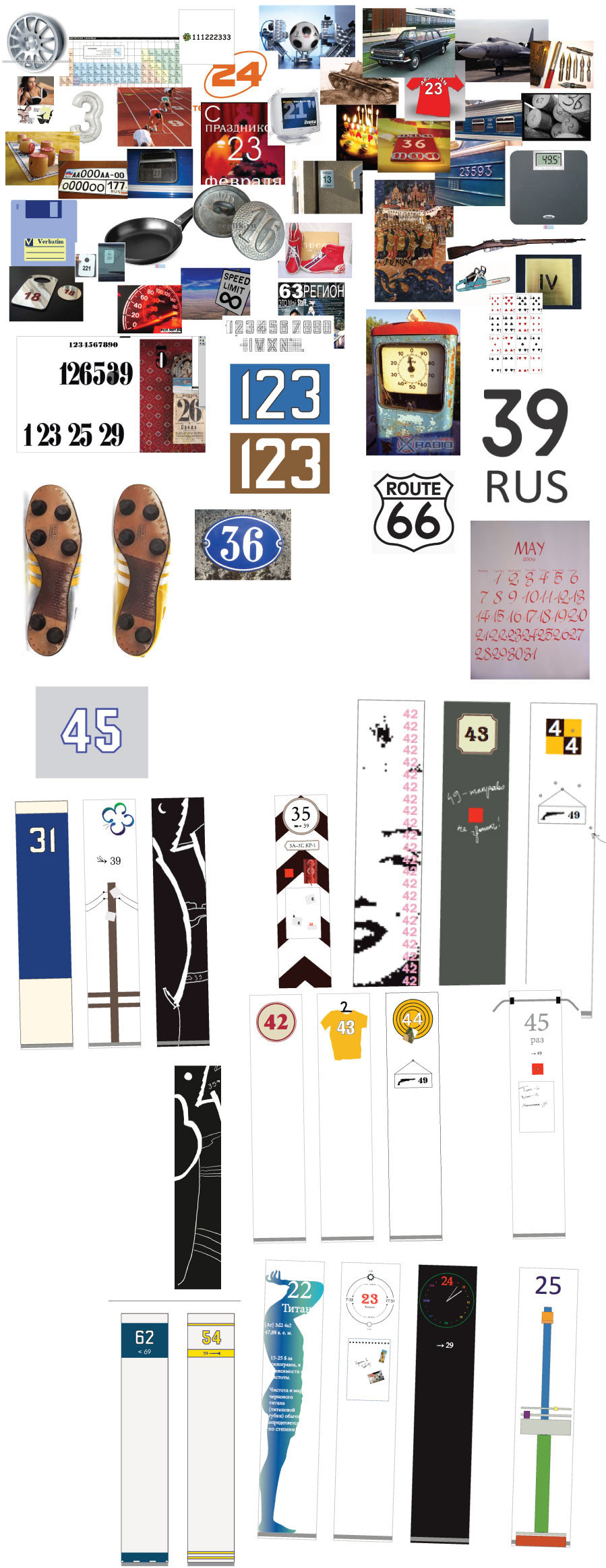

With the structure in place, moving on to the floor themes, bringing up all we can think of regarding different numbers, and drafting the posts. Deciding to cover posts in marker-friendly material to encourage some “travel notes” exchange.

yandex office navigation process 08

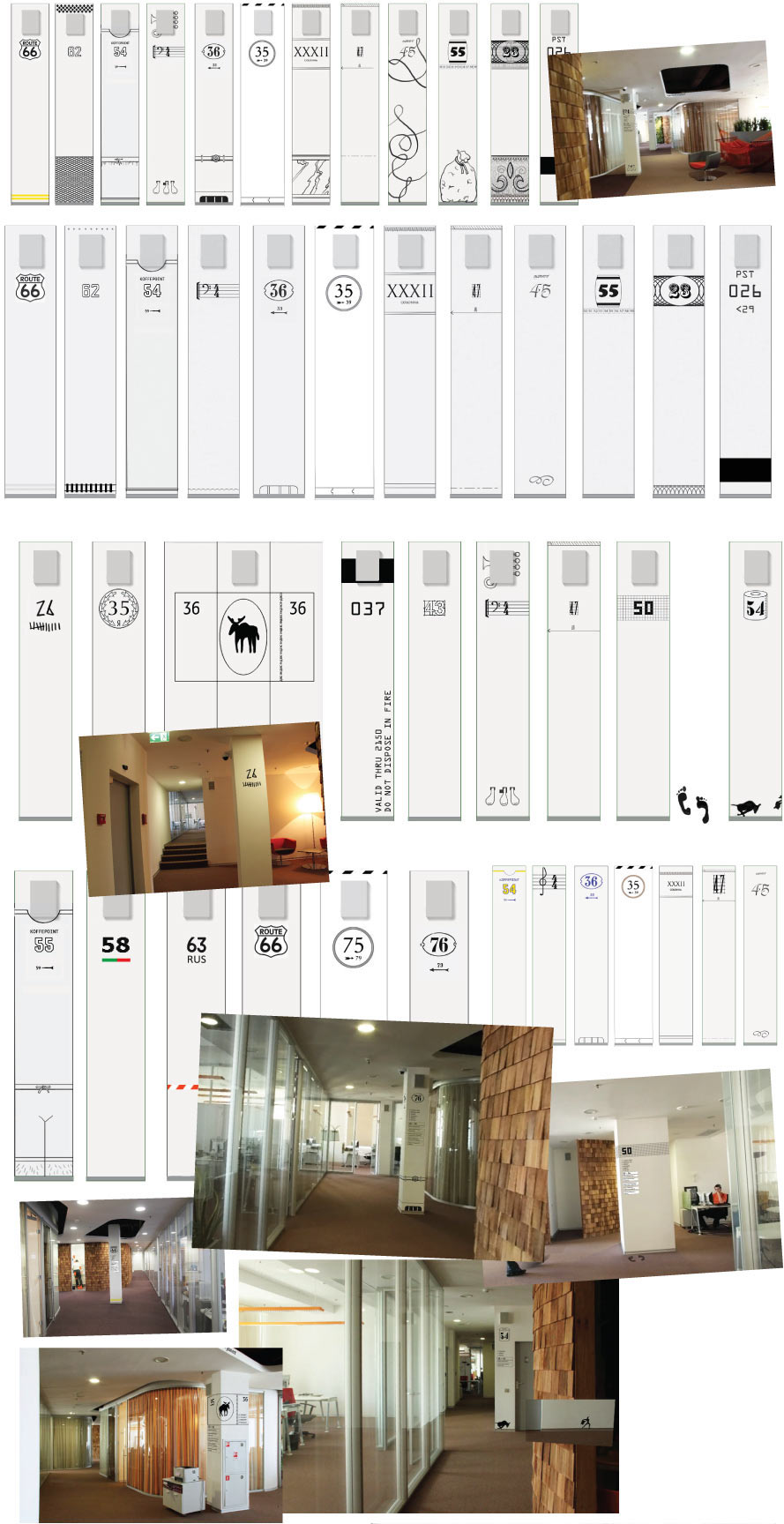

Defining the themes, making the posts more austere.

yandex office navigation process 09

Developing some ideas around the themes and completing the forth floor.

yandex office navigation process 10

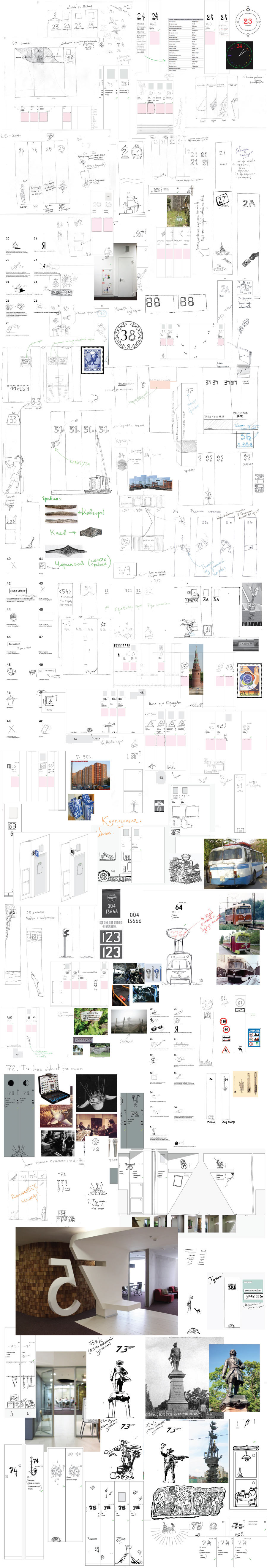

Everyone really loves it. Looking for more metaphors to furnish each post with, designing the grid and drafting the layouts.

yandex office navigation process 11

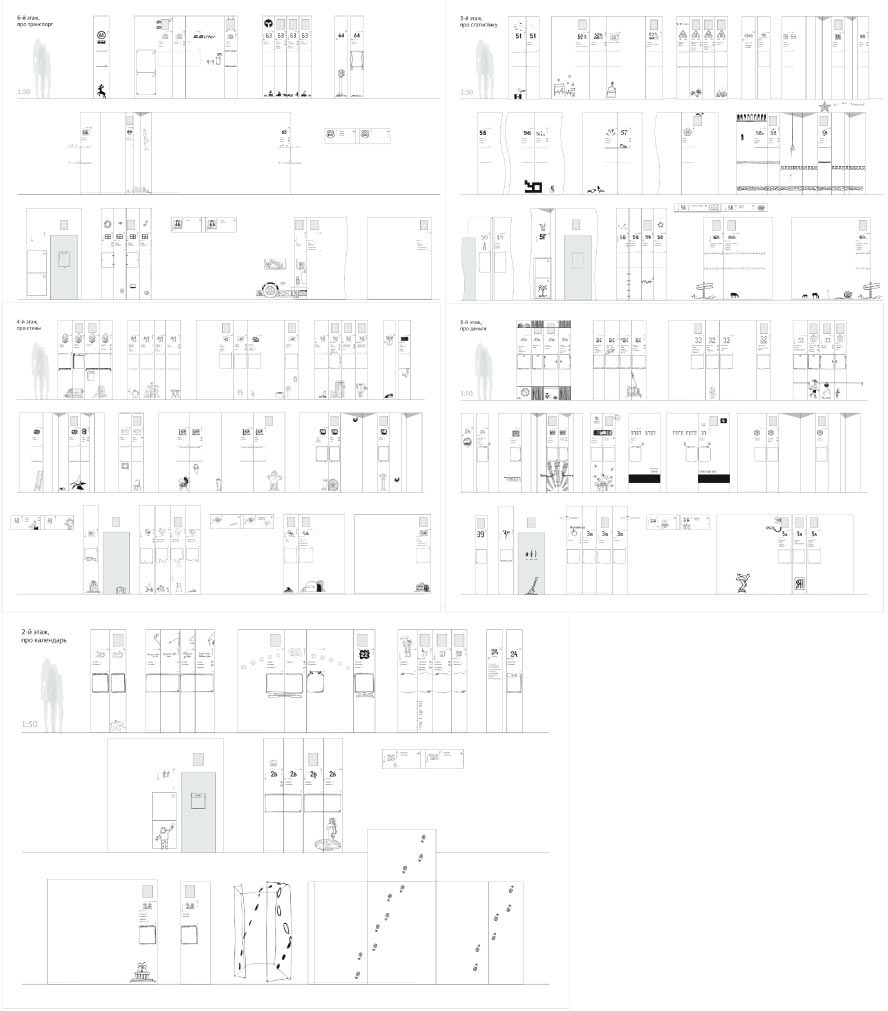

Measuring all posts, typesetting the design, and preparing layouts for the contractor.

yandex office navigation process 12

Same with the “skylights”: photographing, measuring, making layouts.

yandex office navigation process 13

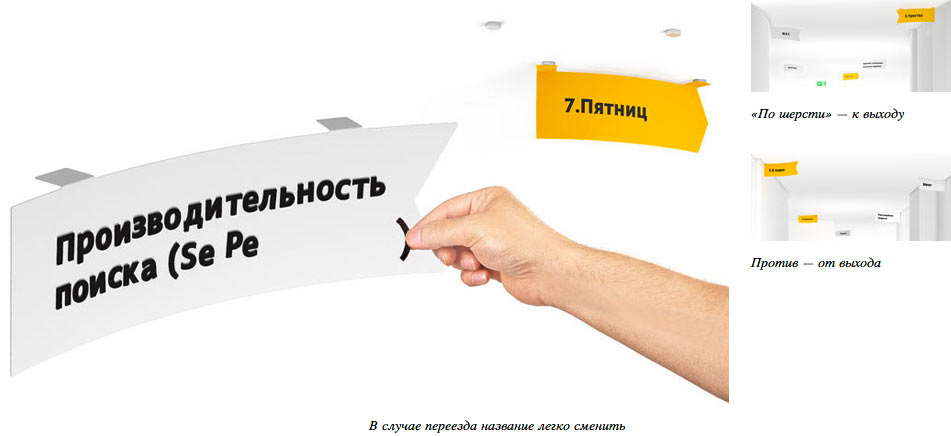

Magnetic mounting and letters made of ferromagnetic vinyl:

yandex office navigation process 13 1

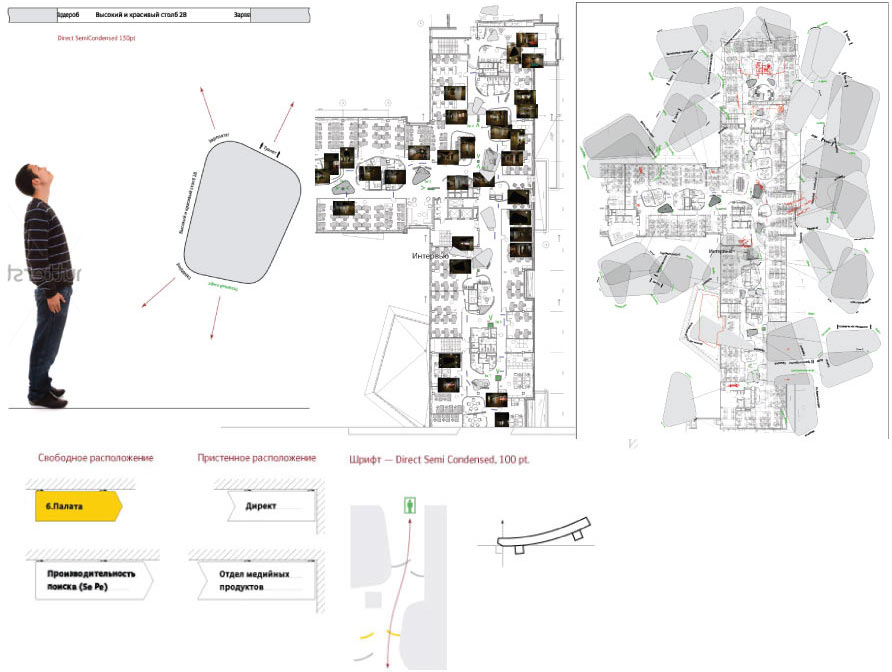

Realizing that the major “intersections” do need floor plans. How about a mandatory fire evacuation and navigational plans combo, it’s a win-win. Working on plans for each floor and instructions for the contractors.

yandex office navigation process 14

Coming up with themed arrows to support the metaphors on posts, they’ll direct public to a music room, gym, café, and such. Topping off the visual feast with “just illustrations.”

yandex office navigation process 15

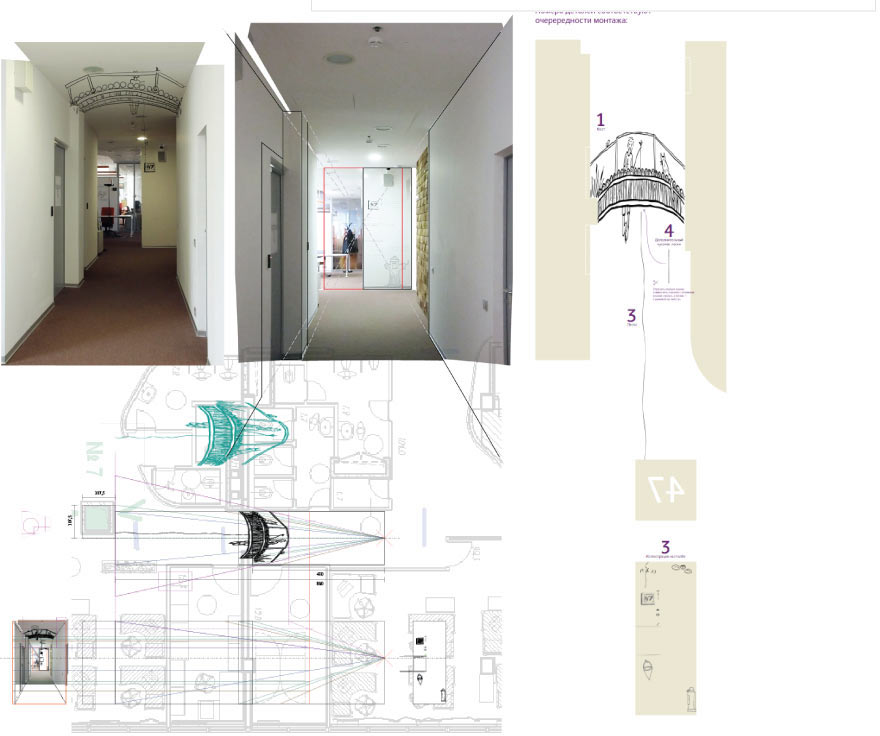

A bridge in perspective:

yandex office navigation process 16

Throwing more “flesh” in: equipping each floor with a covert bike from a “boneshaker” to anti-gravity type. Researching the subject, drawing.

yandex office navigation process 17

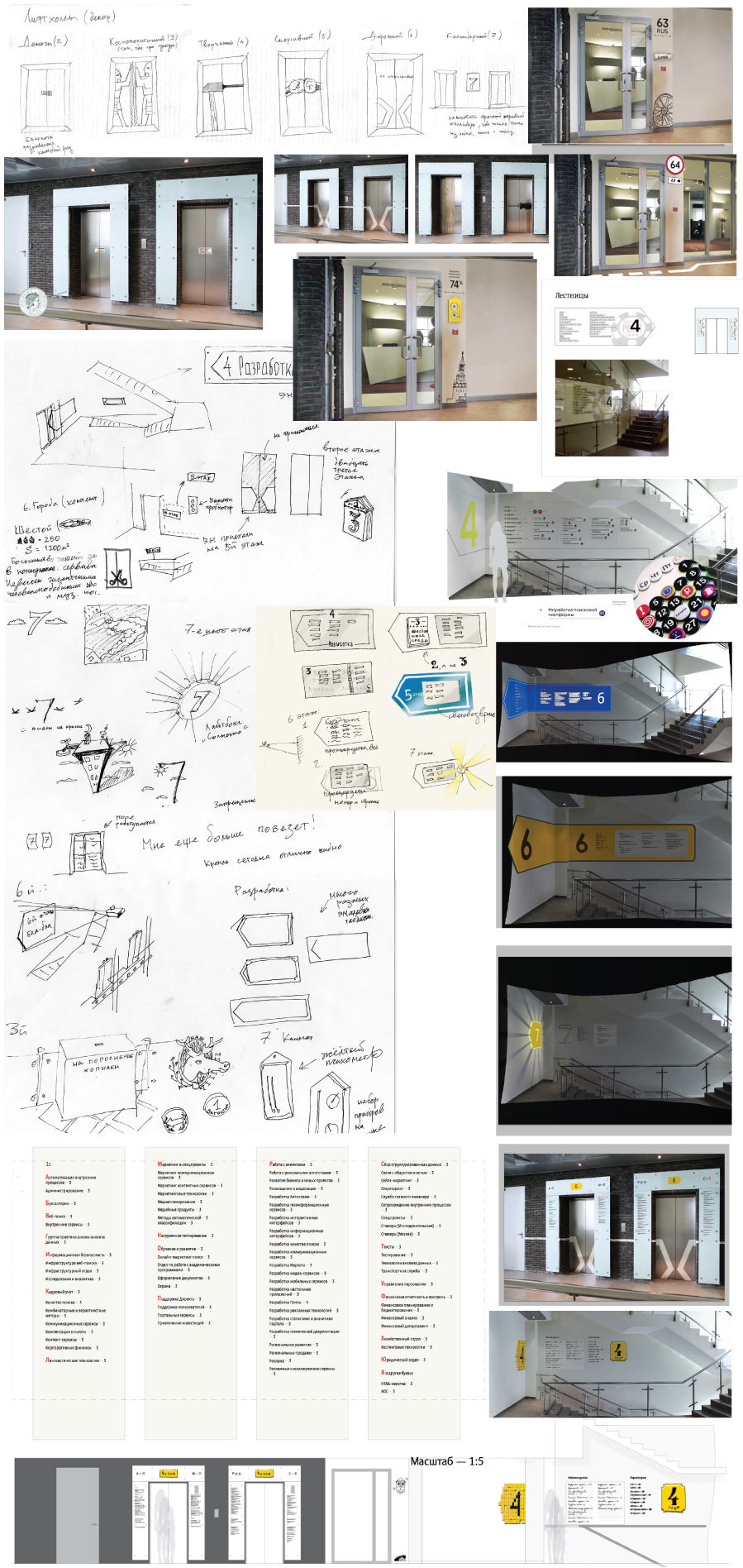

Moving to elevator halls. The floor’s main entrance is the place for the grand presentation of its theme. Typesetting the “table of contents”: the floor guides to be placed by stairs and the whole building guide to go by elevators.

yandex office navigation process 18

The customer says they need just some decoration and no navigation at the elevator halls. Surprise, surprise. Inventing extra themes for the elevator halls to supplement the main floor themes.

yandex office navigation process 19

The executive seventh floor needs something cosmic but within the budget. Brainstorming all things sky, paradise, weather, height...

yandex office navigation process 20

Light animation:

yandex office navigation process 21

Floor projection:

yandex office navigation process 22

Fishes:

yandex office navigation process 23

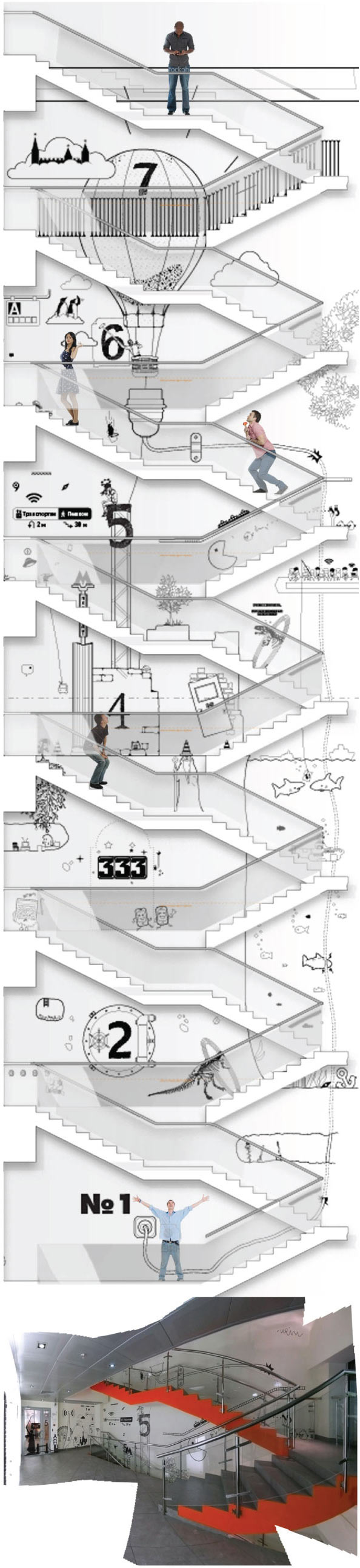

Drawing an enormous illustration the size of the whole stairwell wall. Having a blast stuffing it up with all kinds of cultural links, context rhymes, and web memes.

yandex office navigation process 24

Picking lightbox colors and drawing pictures for the doors, elevators, and offices.

yandex office navigation process 25

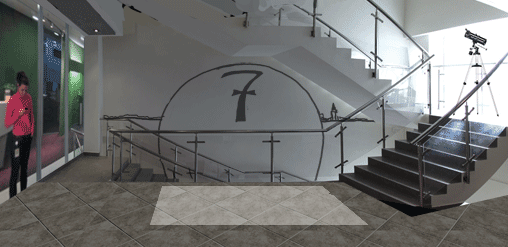

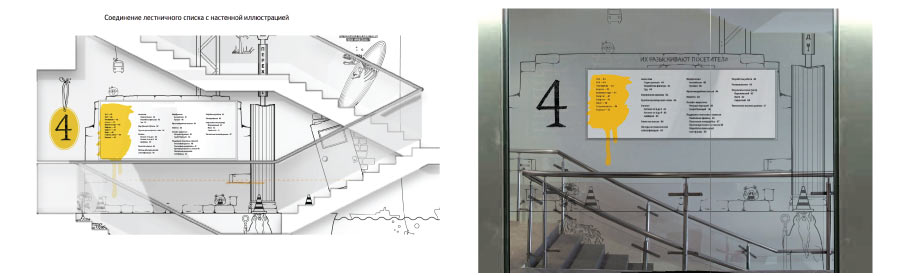

The customer wants us to bring the floor guides back and place them by the stairs. Satisfying the request by embedding them into the grand illustration.

yandex office navigation process 26

Thinking on design needs for the facade and how to guide visitors to the main entrance.

yandex office navigation process 27

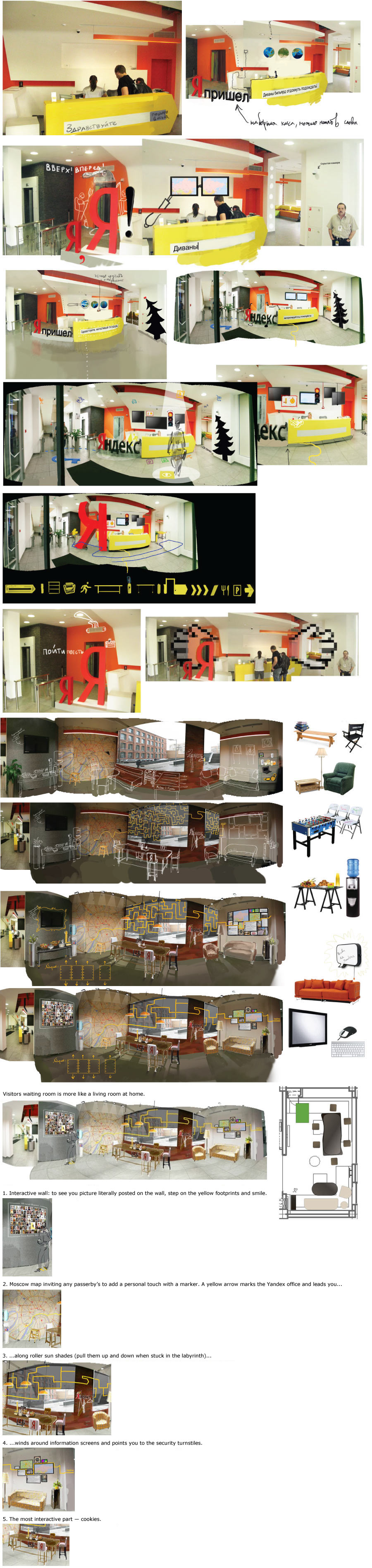

Designing the entrance and the waiting room.

yandex office navigation process 28
