LED Spotlight for Rainbow Electronics

Overview Process Hi-Res

Task:	to create a spotlight casing.

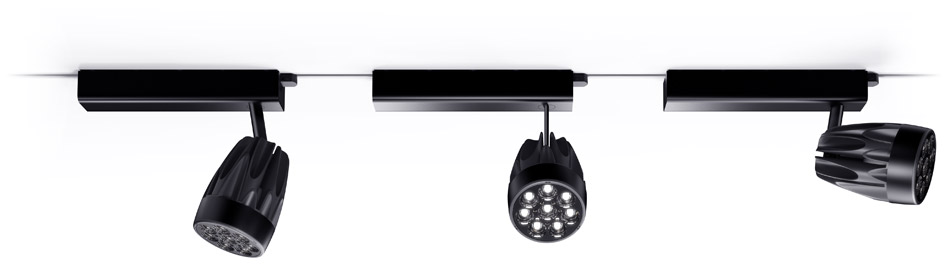

The LED spotlight created by Rainbow Electronics is used to illuminate exhibits in trade and exhibition halls.

The lamp attaches to the ceiling and allows to precisely position light accents in the room

The lamp is powered by 75 W LED modules. Among the advantages of employing LED lamps in spotlights is the lack of ultraviolet radiation (which helps protect the exhibits from fading), as well as natural rendition of colors.

A special design of the radiator ensures the ideal temperature conditions for long hours of operation

Release date: November 23 2012

Cast:

artistic director

Artemy Lebedev

art director

Timur Burbaev

designers

Andrey Fabishevsky
James Wright

industrial designers

Aleksey Sharshakov
Vasily Markin

modelers

Aleksandr Pozdeev
Aleksandra Sviridova

visualizer

Filipp Gorbachev

project managers

Evgenia Mironova
Evgeny Volodin

The studio would like to thank everybody on the client team for their active participation in the project

Dimensions (with power supply unit): 365×143×330 mm (14.3″×5.7″×13″)
Lamp wattage: 75 W
Luminous flux: 5000 lm
Color rendering index: 90+
Lighting angle: 20° or 40°
Rotation angle: 360° horizontally, 90° vertically
Mount: ceiling-mounted busbar trunking system

The radiator is made of aluminum with black or silver anodized matte finish. The lighting mode can be changed: there are two fixed lighting angles which can be switched by simply turning the adjustment ring.

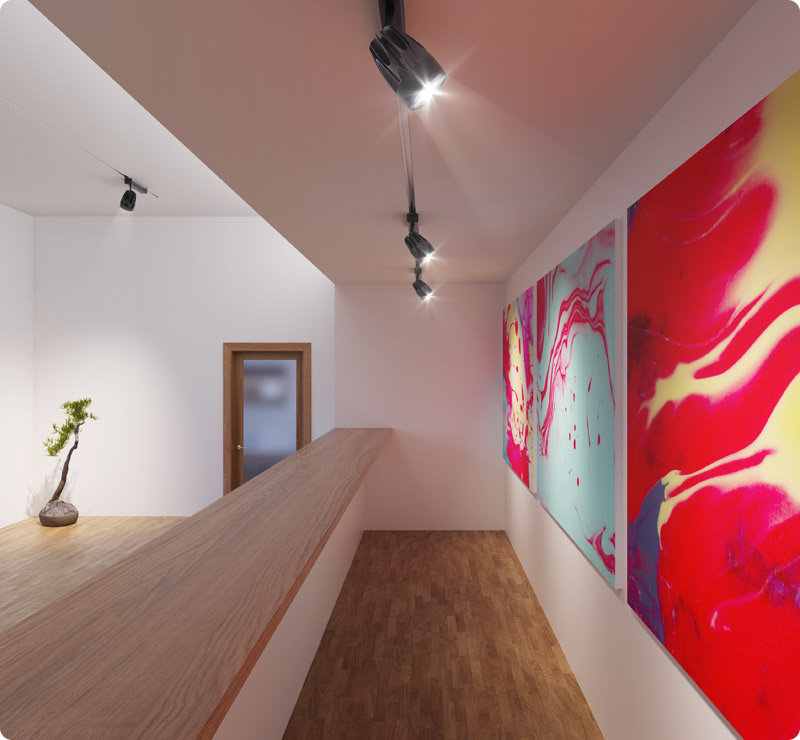

In a good light

A considerable degree of freedom of rotation allows to easily point the spotlight at the chosen object.
