The making of Haier water heaters

Overview   Process   Real life

Warming up our pencils and “checking the waters.”

haier process 01

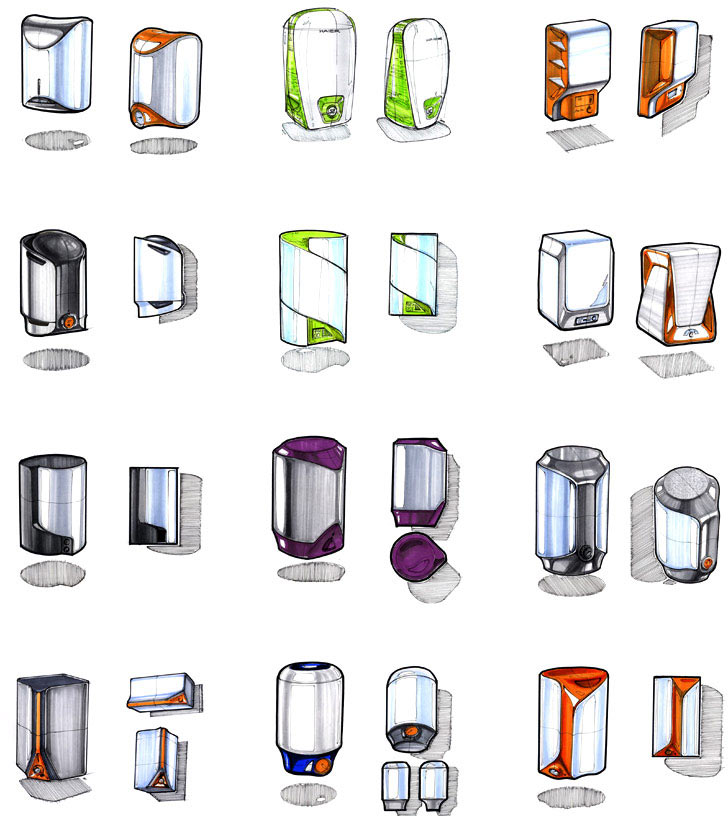

Having a heated “closed-door” discussion and rating the options.

haier process 02

Carrying a steaming first presentation.

haier process 03

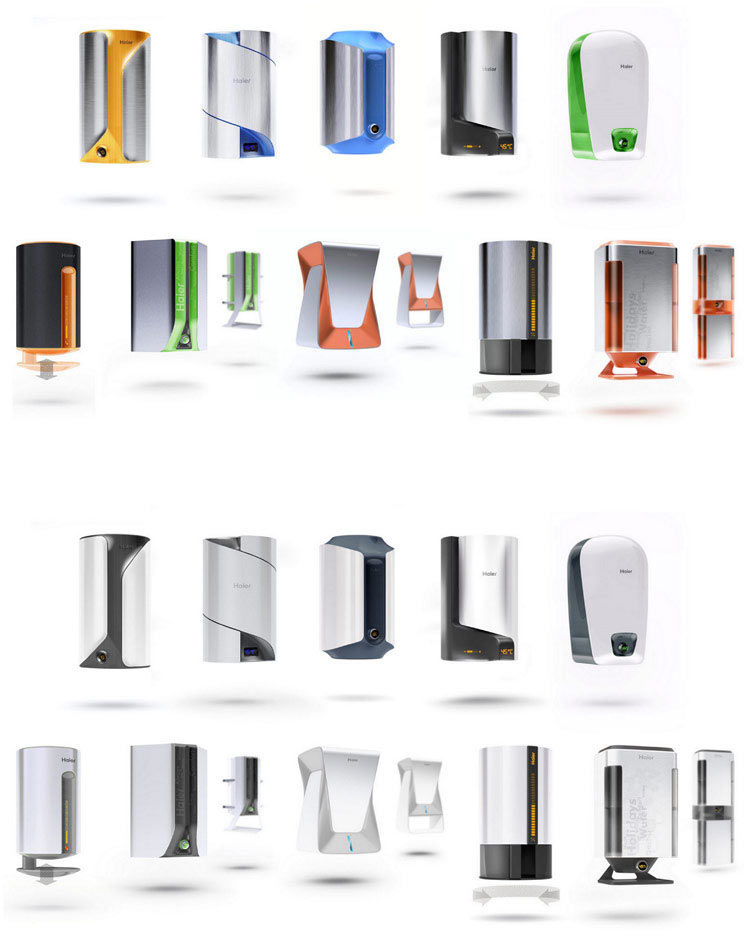

“Could we look at it in black&white?”

haier process 04

“Lukewarm.”

Initiating the “landing.”

haier process 05

Lower.

haier process 006

Lower yet.

haier process 07

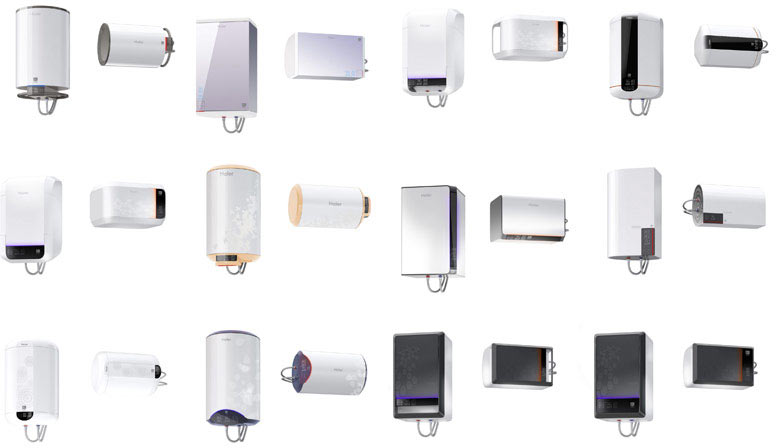

Next presentation.

haier process 08

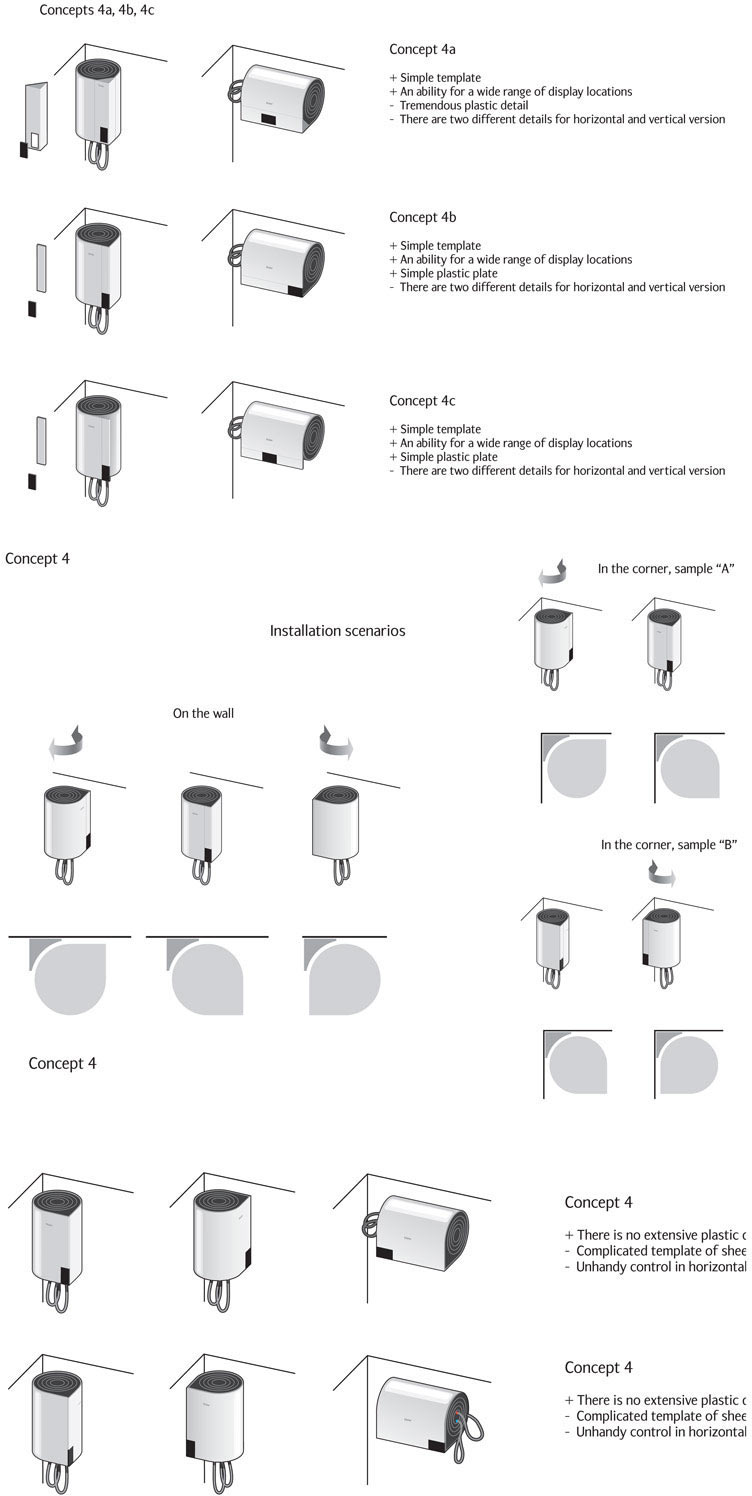

Showing different installation approaches, an assembly scheme, and ways to customize the product.

haier process 09
haier process 10

The customer “reveals” his technological possibilities.

Getting rid of the “water-weight” and focusing exclusively on cylindrical shapes.

haier process 11
haier process 12

Working on the interface.

haier process 013

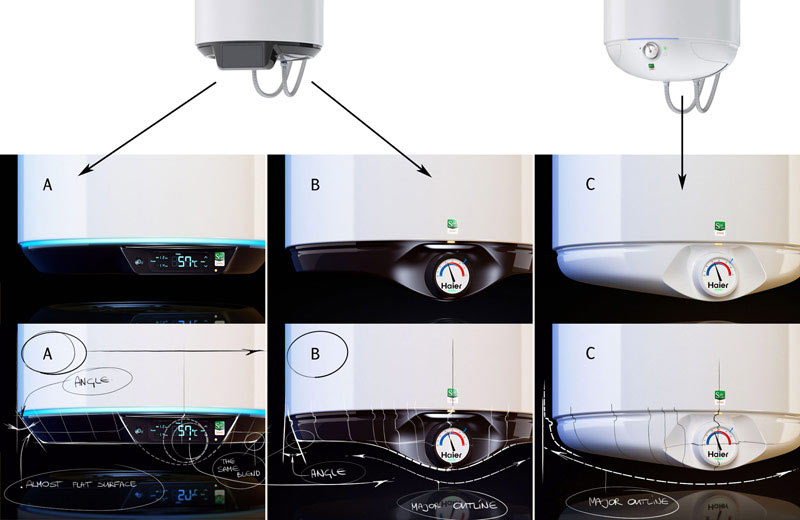

Illustrating the “development” of surfaces.

haier process 15

Full scale ergonomic mock-up.

haier process 14

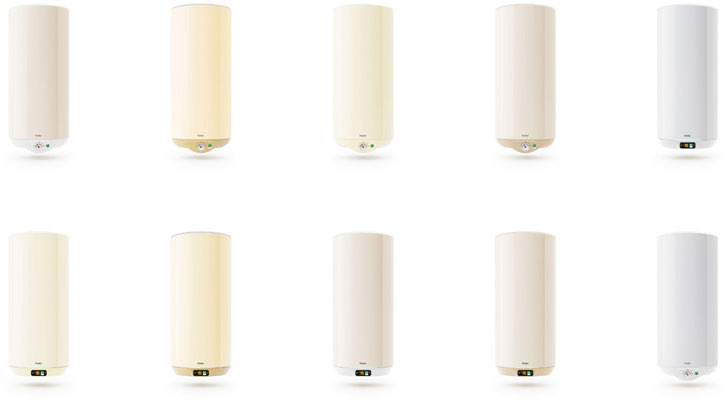

Suggesting appropriate hues.

haier process 16

Reaching the rolling-boil point and setting up the show pieces.

haier process 17
